Re-draw a site plan by converting the scale

Previously, I was given a task by lecturer to redraw a site plan and an elevation view(facade) by converting the scale of 1:100 to 1:75. We are required to trace the drawing we have done on butter paper by using tracing paper. Besides, we are required to use pens with different thickness to emphasise the sequence from the top to the most bottom part of the house and from the most outward view to much inward view of the house. Below are my drawings.

I used 0.4 pen to draw the wall of the house as it appears to be the highest part of the house if we look from the top. It is then followed by 0.3 for the drawing of the doors which are second taller after the walls. For the frame of the windows and the furniture, I have used 0.2. 0.1 is used to draw the windows and the construction lines.



For the facade, I used 0.4 pen to draw the ‘outline’ of the house as it appears to be the nearest from our sight, whereas 0.3 is used to draw the pattern below the roof. Next, I used 0.2 to draw the window and door frames, followed by o.1 to draw the details of the windows and roof tiles as they appear to be the furthest or most inward details.

SJ 05

   During the lecture, we were given a task to find a suitable site of 15m × 10m in Taylor’s University to carry out site measurement. Later, we were required to produce a site plan, thumbnails and two perspectives. Below are the outcomes.

This is our site plan where it is located just in front of the lake with staircases located over there.

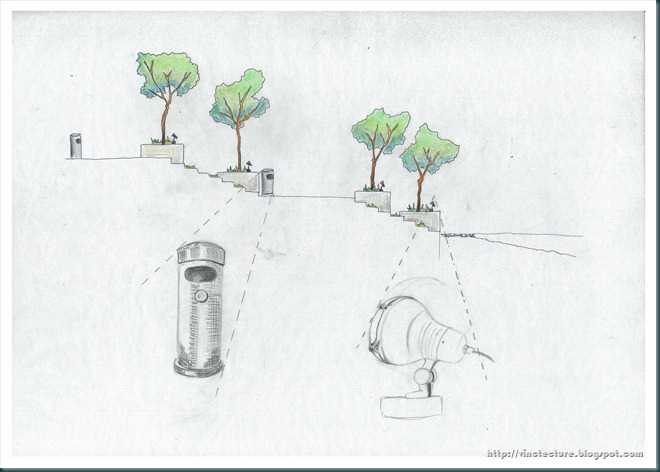

These are the thumbnails that can be found on the site which are dustbin and spot light.

This is the one point perspective drawing, viewing from the lake.

This is another perspective drawing viewing to the lake.

SJ 04a

   The task given this time is to trace the architecture drawings of the architect we had chosen. The architect we had chosen is Morphosis and we were instructed to trace one site plan, plan, section, elevation and perspective. I had chosen one of the architect’s works, which is Perot Museum of Nature and Science, located at Dallas, Texas, United States of America and it occupies 4.7 acres of total site area.

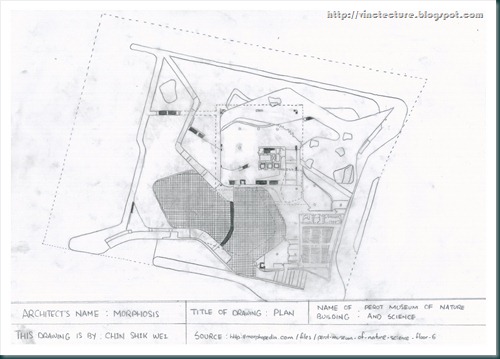

This is the site plan.

This is floor plan of level 1 of the museum

This is section drawing of the building

This is the elevation drawing of the building.

Perspective drawing

SJ 03b

   On 28.9.2010, I was instructed by lecturer to draw sketches of structures within the time given on the spot. Below are my drawings.

2 point perspective drawing of Axis Viana Hotel in Viona do Castelo. As the distance getting further form our sight, the windows diminish in size.

The view of a room in hotel above.

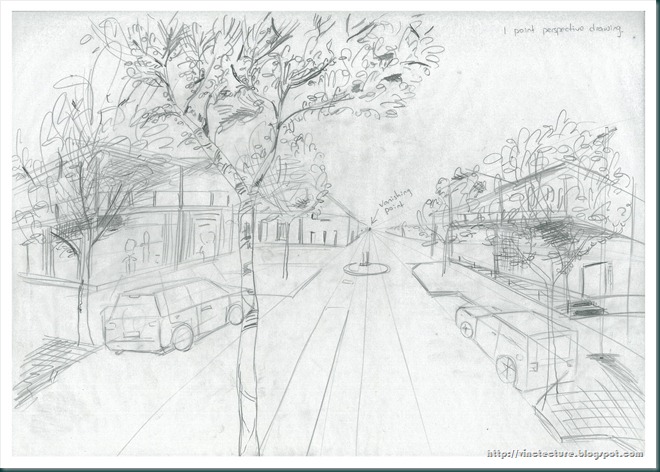

This is the 1 point perspective drawing. The size of shoplots enlarges when it is getting nearer to our eyes.

2 points perspective drawing

The direction of light is shown by the part where it is bright (not shaded)

SJ 03a

   The task given this time is to sketch out 1 plan, 3 perspectives (one external) and 2 details by referring to the structures in Taylor’s University Lakeside campus. Below are my sketches.

  The plan shown above is the second floor of Taylor’s University.

This is the external perspective drawing of the view of the academic blocks C,D and E.

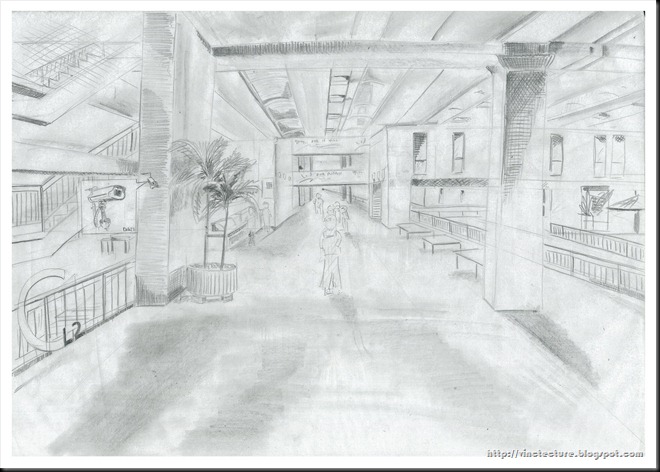

  The sketch above is a single vanishing point perspective drawing where the size of the columns diminishes so that it looks further from our sight and to enlarge the size of the academic blocks.

The sketch above is a two-point perspective drawing.

Details

Closed circuit television (cctv) attached on the wall of the column

Fire alarm box

SJ 02c

  The task given this time is to sketch 3 objects, 1 perspective with the strokes learnt previously to be applied on the sketches. Below are my sketches drawn.

   The sketch above is a cup where I  have applied different types of strokes including Zig-zag, Cross-hatching, Short dashes and Scribbles. These strokes are used to highlight the shadow on the cup to further show the direction of light. For the shadow of the cup, I have used short dashes.

   The sketch above is a hat. For this sketch, I had applied short dashes to show the effect of curving inward. For the ribbon that is tied around the hat, I used Continuous and Scribbles. And for the shadow, I used the combination of Zig-zag and Cross-hatching.

   The sketch above shown is onion. I have applied Zig-zag on the part where the skin is tear off. Besides, I used lines too to emphasis the effect of smoothness of the outer layer of onion.

   The sketch above shows a wooden house with a tree located in front of it. For the roof of the house, i have applied Cross-hatching technique. For the wall, I have applied Continuous, Short dashes and Scribbles to enhance the feeling of wooden house. Besides, i have applied all the strokes on the tree to imply the theme of nature as i want to show the complication of the tree branches. As for the background ,  i used Zig-zag to show the distance.

SJ 02a

   Previously I had learnt different types of sketching strokes which are Zig-zag, Cross-hatching, Pointilism, Continuous, Short dashes and Scribbles.Below are the examples explaining the various kind of strokes that I had drawn.

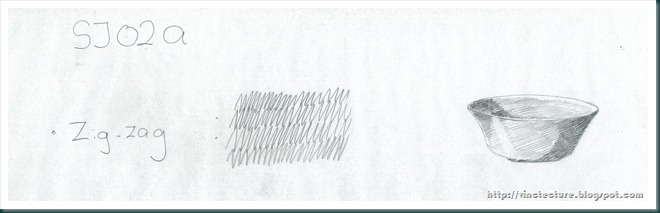

Zig-zag (with an object to further elaborate the usage of the stroke)

Cross-hatching

Pointilism

Continuous ( I had drawn a tree, a bench and a lamp post by using a single line)

Short dashes

Scribbles (I applied scribbles technique on drawing hair)

SJ 01

   Introduction – I was given an assignment by lecturer to look out for 3 toy characters preferable and sketch them out on butter paper. In later stage, 1 character will be chosen after tutorial session in order to continue the assignment in building a tower for the toy character.  Below are the toy characters i have chosen.

First toy character chosen – Pikachu

~ Species : Mouse Pokemon

~ Height : 0.4 m

~ Weight : 6.0 kg

Physiology

- has short, yellow fur with brown stripes on the back

- black-tipped ears

- an unusually shaped tail ( resembling a lightning bolt)

- has acute senses of hearing

* Evolves from Pichu by happiness

* Evolves into Raichu when exposed to a Thunderstone

Second toy character chosen – Mario

~ Appeared in 1981 in the first game : Donkey Kong

~ Created by Shigeru Miyamoto

~ Original name : Mr Video

Physical appearance

- Clothed in bright red overalls and a blue shirt

- Wear a cap with a logo M

- short and pudgy with a large nose and a mustard

Third toy character chosen – Snoopy

~ Species : dog (Beagle)

~ Gender – male

~ Created by Charles M. Schulz

~ First time appeared to public – 4/10/1950

~ Original name : Sniffy

~ Owner : Charlie Brown

Physical appearance

- white body with black ears and nose
